Trina Honey M TSM - 370DE08M.08(II)

SKU: Trina Honey M TSM - 370DE08M.08(II)

Availability: In stock

€135.00
  • Buy 20 for €130.00 each and save 4%
  • Buy 30 for €125.00 each and save 8%
  • Buy 50 for €120.00 each and save 12%
  • Buy 100 for €115.00 each and save 15%

* Required Fields

Trina

Worldwide delivery




Product Description
Details

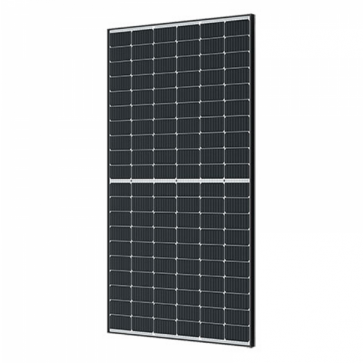

Trina Honey M TSM - 370DE08M.08(II) solar module
120 cells, 370 Wp nominal output, framed Monocrystalline High Power Solar module

Increased power generation with MBB & half-cut technologies
This Honey M product adopts multi-bus bar technology, which can shorten the current conduction distance by more than 50% and thus lower the internal ribbon resistance loss. With finer and narrower bus bars, more sunlight will be reflected back to the round ribbon, thus increasing energy efficiency. The unique circuit design of half-cut cells can reduce power loss to 1/4 compared to full cells, which results in a decrease of electrical resistance within the ribbon and finally improves the overall module efficiency by more than 2%.

Reduced LCOE by improved performance
The Honey M module is compatible with all major balance of system components and module electronics. The half-cut cell design allows it to work at lower temperatures, which improves energy generation per watt. And the unique cell string design makes each cell string work independently, which can significantly reduce the energy loss due to mismatch caused by inter-row shading.

High Reliability
The Honey M module is one of the industry’s most trusted modules. With stronger resistance against hotspots and excessive temperature, half-cut cells can improve module reliability. The application of multi-bus bar cells results in more uniform loads to prevent stress, resulting in better performance even in case of slight cracking.
Ensured PID resistance through cell process and module material control
Resistant to salt, acid and ammonia
Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load

Mechanical Data:

  • 120 monocrystalline cells (6 × 20)
  • Module Dimensions: 1763×1040×30 mm
  • Frame: 35 mm Anodized Aluminium Alloy
  • Weight: 20,0 kg
  • Modules per packing box: 31 pieces
  • Glass: 3.2 mm, High Transmission, AR Coated, Heat Strengthened Glass
  • Encapsulant Material: EVA / POE
  • Backsheet: White
  • J-Box: IP68 rated
  • Cables: Photovoltaic Technology Cable 4.0mm2, L-120cm (for landscape layout)
  • MC4 EVO2 connectors
  • Warranty: 12-year manufacturer guarantee; 25-year Power Warranty

Electrical data and more information:
