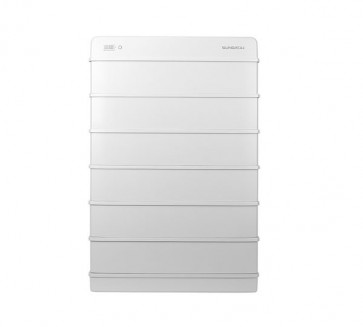

Sungrow SBR192 Lithium-ion Battery

SKU: Sungrow SBR192

Availability: In stock


* Required Fields

Worldwide delivery


Product Description

Sungrow SBR192 - High Voltage Lithium iron Phosphate Battery set

New Sungrow SBR high voltage batteries use Lithium Ferro Phosphate (LFP) cells which are considered the safest and longest-lasting battery chemistry and contain no Cobolt making them more sustainable.
Modular, compact and plug-in-play design of the Sungrow SBR battery sets feature a flexible extensive wide range of 9.6-102.4kWh capacity, while with the three-phase Sungrow hybrid energy storage inverters can operate (in series connected ) among 5-50kW. Sets also have impressive power ratings with a peak output of 6.57kW from 3 modules and 17.5kW peak from 8 modules
All info integrated into one app, users can click to initialize both inverter and battery, commissioning automatically and manage the plant yield timely.

Key Features:

  • Battery Type: LiFePO4 Prismatic Cell
  • One Battery Module: 3.2 kWh, 33 kg
  • Nominal Capacity: 19,2 kWh
  • Nominal/Operating voltage: 384 V / 300-438 V
  • Rated DC power: 11,52 kW
  • Max. charge/discharge power: 13,14 kW
  • Max. charging/discharging current: continuous - 30 A; 10s pulse - 42 A
  • Short circuit current: 1700 A
  • Display: SOC indicator, status indicator
  • Communication interface: CAN
  • Protection: Over/Under voltage and temperature protection; Over current protection; DC breaker
  • Degree of protection: IP55
  • Dimensions (WxHxD): 625 x 935 x 330 mm
  • Weight: 213 kg
  • Installation location: Indoor / Outdoor
  • Mounting method: Floor stand
  • Warranty: 10 Years (Refer to battery warranty document for conditional application, please)
  • Expansion adaptation: Up to 4 units in parallel (need extra Junction box)
