Product Description

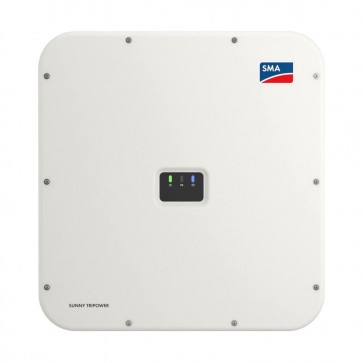

Solar Inverter for commercial and large home PV systems

The new Sunny Tripower X 12 is the innovative system solution for commercial and large home PV systems. The integrated System Manager function with direct access to Sunny Portal powered by ennexOS monitors up to five SMA inverters and one energy meter. This enables the dynamic closed-loop control of active and reactive power via SMA Dynamic Power Control. Thanks to the wide input voltage range and the high input current capability, it is compatible with the latest generation of high-performance PV modules. The innovative enclosure design ensures efficient cooling of the electronic components and thus guarantees maximum lifetime of the Sunny Tripower X 12.
Commissioning can be performed quickly and easily as well as centrally for all devices in the system. During operation, users benefit from integrated software solutions: SMA ShadeFix increases PV yields even in the event of partial shading. SMA ArcFix detects electric arcs effectively and can reliably reduce the risk of fire.


  • Integrated connection for radio ripple control receiver (FRE)
  • Compatible with SMA Energy App, 360° App, Sunny Portal, SunnyHomeManager 2.0, Data Manager
  • Arc Flash Protection Function (AFCI)
  • Direct marketing via SMA SPOT up to 135 kVA
  • Integratable DC surge arreste (Type  2 or Type 1+2)


  • Max. PV (DC) array input power: 18000 Wp, STC
  • MPP voltage range: 206 - 800 V
  • Min. input voltage / initial input voltage: 150 V / 188 V
  • Number of independent MPP trackers / strings per MPP tracker: 3 / 2
  • Max. input current per MPP tracker: 24 A
  • Rated output AC power (at 230 V, 50 Hz): 12000 W
  • Nominal AC voltage: 220V / 380V ; 230V / 400V; 240V / 415V
  • AC voltage range: 176V to 275V / 304V to 477V
  • AC power frequency/range:   50Hz / 44Hz to 56Hz;   60Hz / 54Hz to 66Hz
  • Rated output current / Max. output current: 17,4 A / 36,6 A
  • Feed-in phases / AC connection: 3 / 3-(N)-PE
  • Dimensions (W/H/D): 728 mm / 762 mm / 266 mm
  • Weight: 35 kg
  • Mounting type: Wall mounting
  • Noise emission, max. (1m): 65 dB(A)
  • Degree of protection: IP65
  • Number of interfaces: Wi-Fi / Ethernet
  • Number of digital inputs: 6
  • Itegrated: Shade management - SMA ShadeFix; Plant control
  • Warranty: 5 years (optional extendable)
