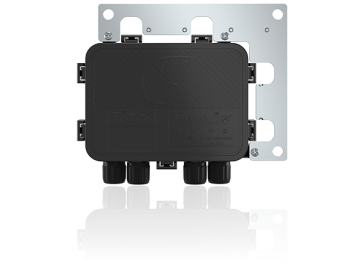

SMA TS4-R-O Optimizer

SKU: SMA TS4-R-O Optimizer

Availability: Out of stock

€42.00
SMA

Worldwide delivery




Product Description
Details

SMA TS4-R-O Optimizer - module technology is a cost-effective system that fits into any PV module design, making it the right solution for every application

The TS4-R module system is a cost-effective system that fits into any PV module design, making it the right solution for every application. With the TS4-R platform, for the first time, every PV module can now be flexibly equipped with an additional function. Only the modules affected by energy yield loss are equipped/fitted with TS4-R This means energy yields can be strategically increased and system costs reduced.

SMA solution

  • Only affected modules (e.g., in case of partial shading) have to be equipped with an optimizer
  • Lower investment costs
  • Lower installation costs

Fast and easy implementation

According to individual requirements, the TS4-R platform offers the corresponding functions:

  • Complete module-level monitoring
  • Module-level shutdown
  • Optimization for complex roof structure and partial shading

With TS4-R, you and your customers only pay for the function actually needed.
With no additional tools, the TS4-R solution can be quickly and easily mounted to a module already in the warehouse or directly on the construction site. This makes logistics easier and reduces installation time.
If the system is to be monitored or shut down, you will need the Cloud Connect Advanced communication unit which is available separately.

System optimization

  • Yields boosted in partial shading and different module configurations
  • Module-level shutdown
  • Module-level monitoring

TS4-R Progressive Functionality

The TS4-R platform offers integrated power electronics with various functions. Functionality increases with each unit.

With the Monitoring function, the entire PV system can be monitored at the module level. Faults on individual modules, such as those caused by dirt, are displayed and can be rectified quickly. The Shutdown function enables the PV system to be switched off at the module level. Using the optimization function, the power of the PV system can be boosted even in partial shading or with different module configurations.

More information:
