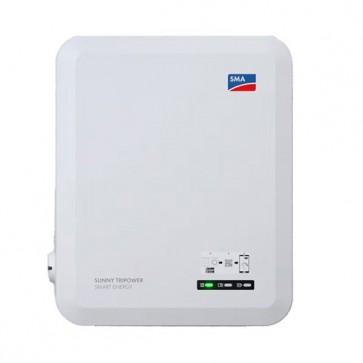

SMA SUNNY TRIPOWER STP 8.0 SMART ENERGY HYBRID INVERTER

SKU: STP8.0-3SE-40

Availability: In stock

€2,975.00

* Required Fields

SMA

Worldwide delivery




Product Description
Details

SMA SUNNY TRIPOWER STP 8.0 SMART ENERGY HYBRID INVERTER

The new three-phase hybrid inverter SMA Sunny Tripower Smart Energy is the  two-in-one solution for solar power supply in the residential sector.
In it, SMA combines intelligent technologies and integrated services into a space-saving compact solution that is simple and convenient. The system can be expanded at any time and also integrates electric mobility or heat pumps. The integrated backup power function secures the household's power supply even in the event of a grid failure. That makes domestic PV systems comprehensive, smart energy systems with solar energy self-sufficiency of up to 100 percent.

The SMA Sunny Tripower Smart Energy hybrid inverters is available in power classes from 5-10kW and is compatible with BYD's high-voltage batteries:
BYD Battery-Box Premium HVS 5.1 // 7.7 // 10.2 // 12.8 set
BYD Battery-Box Premium HVM 11.0 // 13.8 // 16.6 // 19.3 // 22.1 set

Technical data:

Input (PV DC)

  • Max. PV (DC) array power Input: 12000 Wp
  • MPP voltage range: 330 - 800 V
  • Min. input voltage / initial input voltage: 150 V / 180 V
  • Number of independent MPP inputs / strings per MPP input: 2 / A:1; B:1
  • Max. input current - input A / input B: 12.5 A / 12.5 A

Battery

  • Battery connection type: Lithium-ion
  • Battery Voltage range 150 V to 600 V
  • Max. charging current / max. discharging current: 30 A / 30 A

AC connection

  • Rated AC connection power (at 230 V, 50 Hz): 8000 W
  • Nominal AC connection voltage: 3 / N / PE; 220 V (230V; 240V) / 380 V (400V; 415V)
  • AC voltage range: 156 V to 277 V
  • AC power frequency/range: 50 Hz / 45 Hz to 55 Hz
  • Rated output current: 3 x 11,6 A
  • Feed-in phases/connection phases: 3 / 3

AC backup

  • Max. connectable power for backup load: 13800 W
  • Rated Output (AC backup) Power 1~/3~ (at 230 V, 50 Hz): 2660 W / 8000 W

General data and Equipment

  • Dimensions (W/H/D): 500 mm / 598 mm / 173 mm
  • Weight: 30 kg
  • Noise emission, typical: 30 dB(A)
  • Degree of protection: IP65
  • Number of interfaces: Wi-Fi/Ethernet/BAT-CAN: 1 / 2 / 1
  • Number of digital inputs / outputs: 5 / 1
  • Shade management: SMA ShadeFix (integrated)
  • Warranty: 5 / 10 years (When device is registered via the SMA product registration page (sma-service.com)
