SMA Sunny Highpower Peak3 SHP 100-20

SKU: SMA SHP 100-20

Availability: In stock

€7,199.00

* Required Fields

SMA

Worldwide delivery




Product Description
Details

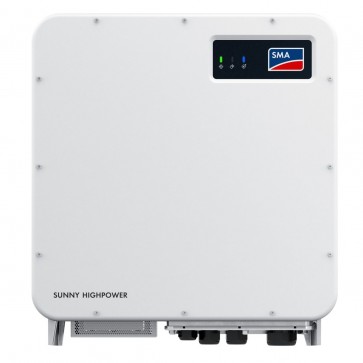

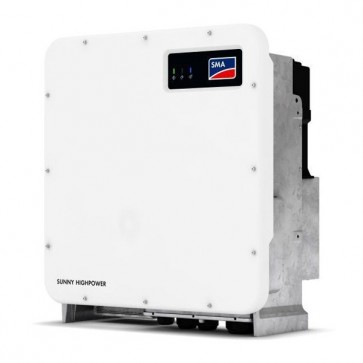

SMA Sunny Highpower Peak3 SHP 100-20
Get large-scale projects up and running easily

Sunny Highpower PEAK3 SHP 100-20 is compact string inverter offers cost-saving solutions for large-scale PV systems thanks to its high power density. Easy to install and easy to transport, the PEAK3 is the cost-saving solution for industrial solar panel installations.

Maximum safety & reliability

The PEAK3 inverter focuses on what is most important – maximum yield and optimal plant availability. All features and components are custom-tailored in order to keep the weight down, to minimize potential error sources and to maximize efficiency. Proven technologies such as the active cooling system SMA OptiCool ensure a long lifetime of the inverters.

Flexible, easily scalable plant design

The PEAK3 system solution combines the advantages of a decentralized system layout with those of the central inverter concept. The DC Combiner Boxes enable efficient planning and easy expansion of large-scale solar plants even on heterogeneous terrain. Thanks to the modular approach, projects can be scaled both in terms of power and function. This means maximum flexibility in the plant design.

Ready for the digital energy world of tomorrow

The PEAK3 system solution is ready for ennexOS, SMA’s pioneering digital platform. ennexOS converges the data of all relevant energy sectors to realize modern, forwardlooking products in the energy industry. The platform is gradually extended and currently offers powerful features such as satellite-based performance ratio monitoring.

Fast installation, easy commissioning

The PEAK3 system solution offers smart functionalities for quick and safe installation of all devices. Ergonomic grips and the integrated hook-in mechanism simplify the mounting of the inverters. Large, stiff DC cables can be conveniently routed via a separable connection plate and allow hassle-free connection. A single ennexOS SMA Data Manager M enables up to 200 inverters to be commissioned centrally in just a few minutes.

Efficient control, convenient monitoring

Each device can be controlled directly via reliable, fast Ethernet communication between Data Manager and inverter. The entire plant portfolio can be centrally monitored with the new Sunny Portal powered by ennexOS. Changes to the configuration are easily made across plants without setting up multiple VPN connections. Additional monitoring systems can access all devices via the open Modbus / TCP interface.

The future-proof solution that grows with your requirements

More than 20 years of utility experience have gone into the development of the PEAK3 system solution. Central handling, decentralized system and a modular concept – that’s exactly what makes PEAK3 so convincing. The powerful supplements as a SMA Data Manager M, WAGO-I/O-System 750, MOXA ioLogik E1260/E1242 helps you get the most out of large PV plants.

PEAK3 – Exactly what is needed to meet the highest demands for maximum yield.

Main features:

  • Rated output AC power at nominal voltage: 100 kWp
  • AC nominal voltage: 400 V
  • MPP voltage range: 590 V – 1000 V
  • Max. Input current DC: 180 A
  • Number of MPP trackers: 1
  • Ethernet interface: 2 ports RJ45
  • Cooling method: Active cooling, speed-controlled fan
  • Degree of protection: IP65
  • Dimensions: 770 / 830 / 444 mm
  • Weight: 98 kg
  • Mounting type: Rack mounting
  • Warranty: 5years
