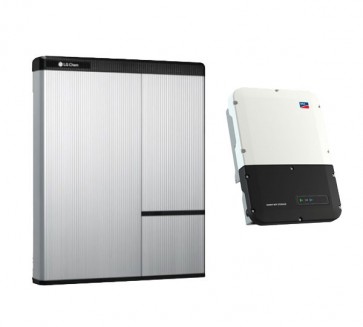

LG Chem RESU 10H & SMA Sunny Boy Storage 5.0 Storage Package

LG Chem RESU 10H & SMA Sunny Boy Storage 5.0 complete storage set with 9.8 kWh High Voltage 400V storage battery system and SMA battery solar inverter for the new solar systems or retrofitting an existing PV-system

Complete store system consisting of:

• LG Chem RESU 10H - High Voltage 400V lithium-ion battery
• SMA Sunny Boy Storage 5.0 battery solar inverter
• SMA Sunny Home Manager 2.0
• Communication cable 5m (CAT7) for LG Chem RESU 10H or Communication cable 2m LiYCY for LG Chem RESU 10H

LG Chem and SMA benefits:

• 10 years LG Chem and SMA manufacturing guarantee
• Easy and fast installation
• LG RESU Storage units are rated to 6000 cycles
• Light weight and integrated handles for transport
• Integrated Ethernet and WLAN interfaces
• Webconnect for faster and easier PV system monitoring
• Storage system for new installation and retrofitting systems

LG Chem RESU 10H technical details:

• Total power: 9.8 kWh
• Usable energy: 9.3 kWh
• Voltage range DC (V): 385 - 550 V
• Nominal capacity: 63 Ah
• Max. Power (kW): 5.0
• Peak power (kW) (for 10 seconds): 7.0
• Dimensions (L x H x D, mm): 744 x 907 x 206
• Weight (kg): 99.8
• Housing protection: IP55
• Communication: CAN 2.0 B
• Certificate Cell: UL1642
• Certificate Product: TUV (IEC 62619) / UL1973 / CE

Downloads:

LG Chem RESU 10H - High Voltage 400V lithium-ion battery

• LG Chem RESU 10H Datasheet
• LG Chem RESU 10H Installation Manual
• LG Chem RESU 10H Warranty

SMA Sunny Boy Storage 5.0 battery solar inverter

• SMA Sunny Boy Storage 5.0 Data Sheet
• SMA Sunny Boy Storage 5.0 Quick Reference Guide
• SMA Sunny Boy Storage 5.0 Operating Manual
• SMA Sunny Boy Storage 5.0 Warranty

SMA Sunny Home Manager 2.0

• SMA Sunny Home Manager 2.0 Datasheet
• SMA Sunny Home Manager 2.0 Quick Reference Guide
• SMA Sunny Home Manager 2.0 Operating Instructions
• SMA Sunny Home Manager 2.0 Warranty
