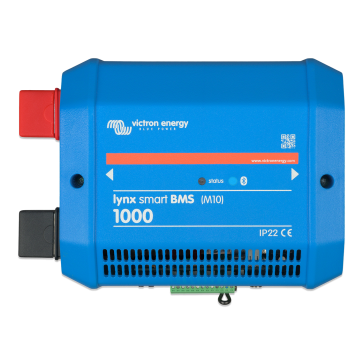

Victron Lynx Smart BMS 1000 (M10)

Victron Lynx Smart BMS 500 (M10)

The Victron Lynx Smart BMS 1000 (M10) is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. It is available in two versions: 500A (with M8 busbar connections) and 1000A (with M10 busbar connections).

The battery systems can be configured in series, parallel, or a combination of both, supporting 12V, 24V, and 48V systems. Each system can accommodate up to 50 batteries, offering up to 192kWh (12V) or 384kWh (24V/48V) of energy storage. By paralleling multiple Lynx Smart BMS units, you can expand capacity and ensure redundancy.

Key Features:

• Built-in 1000A contactor used as a fallback safety mechanism and also suitable as a remote controllable main system switch.
• Battery monitor, indicating state of charge percentage and more data.
• Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
• Bluetooth for use with our VictronConnect App, for setup and monitoring, including Instant Readout - key data of the BMS at-a-glance.
• Local and remote monitoring using a Victron GX device, for example the Cerbo GX or Ekrano GX.

The Lynx Smart BMS is part of the modular Lynx Distribution system.

More information:

• Victron Lynx Smart BMS 1000 (M10) datasheet
• Victron BMS overview
