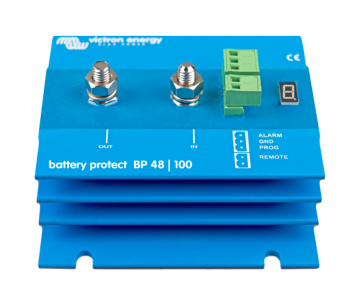

Victron BatteryProtect 48V-100A

Victron BatteryProtect 48V-100A
With 7-segment LEDdisplay: easy to set up

The BatteryProtect disconnects the battery from non essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
The BatteryProtect is not designed for reverse currents from charging sources.

Programming made easy
The BatteryProtect can be set to engage / disengage at several different voltages. The seven segment display will indicate which setting has been chosen.

A special setting for Li-ion batteries
In this mode the BatteryProtect can be controlled by the VE.Bus BMS.

Ultra low current consumption
This is important in case of Li-ion batteries, especially after low voltage shutdown.Please see our Li-ion battery datasheet and the VE.Bus BMS manual for more information.

Over voltage protection
To prevent damage to sensitive loads due to over voltage, the load is disconnected whenever the DC voltage exceeds 64V.

Ignition proof
No relays but MOSFET switches, and therefore no sparks.

More information:

• Victron BatteryProtect 48V-100A Datasheet
