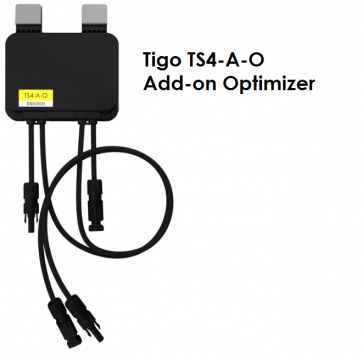

Tigo TS4-A-O Optimizer
Power Optimizer of PV modules
Tigo products provide customers with a cost-effective solution to reduce issues caused by shading, increasing PV solar installations performance and return on investment.
PV modules arrays which are powered by the advanced & unique Tigo TS4 junction boxes can product more energy. Tigo TS4-A-O Add-On device simply clip to the frame of standard PV modules and connect to the + & – connectors to improve performance, offer advanced safety and provide live module-level data & diagnostics.
Optimisation function is available as an add-on/retro-fit unit - TS4-A-O. Suitable for PV systems designing where are unequal string lengths, where mixed orientations, or other areas of mismatch. Can be installed in shaded areas with a reduced setback ratio, only when needed with selective deployment:
- full deployment with Module-Level Monitoring & Safety on every PV module by installing additionally the Cloud Connect Advanced (CCA) + Tigo Access Point (TAP) kit;
- only where needed, with selective deployment
Features:
- Shade and mismatch tolerance
- Module-level monitoring, shutdown, optimization
- Easy Installation
- Smart Commissioning with Android or iOS mobile device
- Maximised roof usage
- Greater design flexibility
- Enhanced energy yield
- All the benefits of Safety and Monitoring when used with Kit - Cloud Connect Advanced (CCA) + Tigo Access Point (TAP)
Technical data:
- Supports PV modules up to 500W
- Outdoor Rating - IP68
- Voltage Range: 16 - 90 V
- Output Cable Length (standard): 1,2m
- Connectors (standard): MC4
- Communication Type: Wireless
- Dimensions: 138.4mm x 139.7mm x 22.9mm
- Weight: 520g
