Sungrow SH3.6 RS Residential Hybrid Single Phase Inverter

SKU: Sungrow SH3.6 RS

Availability: In stock


* Required Fields

Product Description

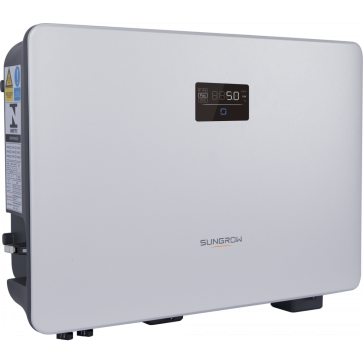

Sungrow SH3.6RS Residential Hybrid Single Phase Inverter

Flexible Application
80~460 V wide battery voltage range
Ideal for both retrofitting and new installations
Built-in smart PID recovery function

Energy Independence
Seamless transition to backup mode for protection against power outages
Fast Charging or discharging, enabling higher self-consumption results
Built-in EMS with advanced customization

Smart Management
Real time data (10 seconds refresh sample)
24/7 live monitoring both online and with integrated display
Online IV curve scan and diagnosis

User friendly setup
Plug and play installation
iSolarCloud monitoring available on App and Web
Lightweight and compact, optimized for heat dissipation

Key data:

  • Recommended Max. PV input power - 10700 Wp
  • Max. / Nominal PV input voltage - 600 V
  • Rated AC output power - 3680 W
  • Max. AC ouput current - 16 A
  • Nominal AC voltage - 220 / 230 / 240 V
  • Max. battery charge / discharge power - 6600 W
  • Degree of protection - IP65
  • Dimensions (W x H x D) - 490 x 340 x 170 mm
  • Weigh - 18,5 kg
  • Mounting method - Wall-mounting bracke
