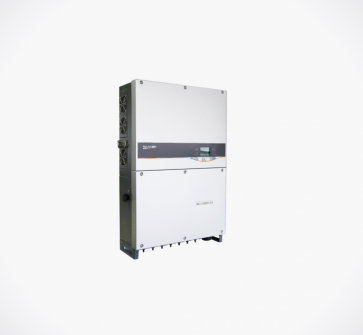

Sungrow SG60KTL-V182 String Inverter

SKU: Sungrow SG60KTL-V182

Availability: Out of stock

€3,195.00
Product Description
Details

Sungrow SG60KTL-V182 String Inverter

High Yield
Max. efficiency 98.9 %, European efficiency 98.7 %
Long-term overload at 1.1 Pn
Full power operation without derating at 50 ℃

Saved Investment
Max. DC/AC ratio up to 1.4
Integrated DC combiner box and DC/AC overvoltage protection

Easy O&M
Touch free commissioning and remote firmware upgrade
Plug-in design of fan and SPD, convenient for on-site maintenance
Integrated string current monitoring function for fast trouble shooting

Grid Support
Compliance with standards: IEC 62109, IEC 61727, IEC 62116, VDE0126-1-1, G59/3, VDE-AR-N-4105, VDE-AR-N-4120, BDEW
Low/High voltage ride through (L/HVRT)
Active & reactive power control and power ramp rate control

Max. PV input voltage - 1000 V
Max. PV input current - 120 A
No. of independent MPP inputs - 1
Max. number of PV strings per MPPT - 14
Nominal AC output power - 60000 W
Max. AC output current - 96 A
Nominal AC voltage - 3 / N / PE or 3 / PE, 230 / 400 V
AC voltage range - 310-480 V
Degree of protection - IP 65
Dimensions (W x H x D) - 634 x 959 x 267 mm
Weigh - 60 kg
Display / Communication - Graphic LCD / RS485
Manufacturer Warranty - 5 years. (Can be extended to 20 years)
