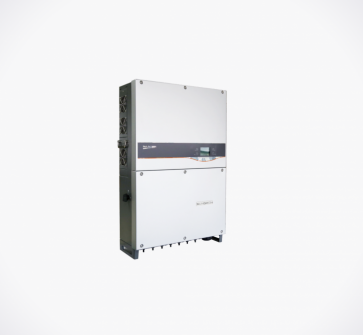

Sungrow SG60KTL-V142 String Inverter

Sungrow SG60KTL-V142 String Inverter

High Yield
Max. efficiency 98.9 %, European efficiency 98.7 %
Long-term overload at 1.1 Pn
Full power operation without derating at 50 ℃

Saved Investment
Max. DC/AC ratio up to 1.4
Max. 95 mm² DC input terminal, saving cable cost

Easy O&M
Compact design and light weight for easy installation
Plug-in design of fan and SPD, convenient for on-site maintenance


Grid Support
Compliance with local standards: IEC 62109, VDE0126-1-1, G59/3, VDE-AR-N-4105, BDEW
Low/High voltage ride through (L/HVRT)
Active & reactive power control and power ramp rate control

Max. PV input voltage - 1000 V
Max. PV input current - 120 A
No. of independent MPP inputs - 1
Nominal AC output power (at 50 ˚C) - 60000 W
Max. AC output current - 96 A
Nominal AC voltage - 3 / N / PE or 3 / PE, 230 / 400 V
AC voltage range - 310-480 V
Degree of protection - IP 65
Dimensions (W x H x D) - 634 x 959 x 267 mm
Weigh - 60 kg
Display / Communication - Graphic LCD / RS485
Manufacturer Warranty - 5 years. (Can be extended to 20 years)

More information:

• Sungrow SG60KTL-V142 String Inverter. Datasheet
• Sungrow SG60KTL String Inverter. Quick Installation Guide
