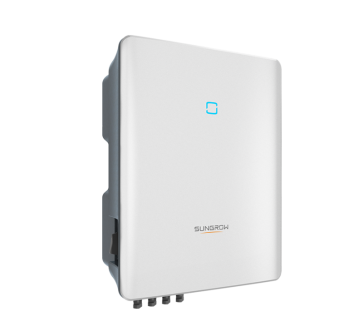

Sungrow SG5.0RT String Inverter

SKU: Sungrow SG5.0RT

Availability: In stock

€1,204.00

* Required Fields

Worldwide delivery




Product Description
Details

Sungrow SG5.0RT Multi-MPPT 3-phases String Inverter for 1000 Vdc Solar Systems

EASY AND USER FRIENDLY
-   18 kg compact design
-   Unique push-in connectors
-   Fast and easy commissioning via App

SAFE AND DURABLE
-   Quick arc fault circuit interrupter
-   Build-in Type II DC & AC SPD
-   High anti-corrosion rating C5

SMART MANAGEMENT
-   Smart IV curve scanning
-   24 / 7 Live monitoring
-   Remote firmware updates

HIGH YIELD
-   Lower startup & wider MPPT voltage
-   Compatible with bifacial modules
-   Built-in PID recovery function

KEY FEATURES:

  • Nominal output AC power: 5000 W
  • AC voltage range: 180 V–276 V / 311 V–478 V
  • Max. AC output current: 8,3 A
  • Recommended max. PV input power: 7,5 kWp
  • No. of independent MPP inputs: 2
  • No. of PV strings per MPPT: 1 / 1
  • MPP voltage range: 160 V – 1000 V
  • Max. PV input current: 25 A (12.5 A / 12.5 A)
  • Max. current for input connector: 30 A
  • Display: LED
  • Communication: WLAN / Ethernet / RS485 / DI / DO
  • Protection: DC reverse connection/AC short-circuit/Leakage current protections;  DC switch;  Arc fault circuit interrupter (AFCI)
  • Degree of protection: IP65
  • Dimensions (WxHxD): 370 x 480 x 195 mm
  • Weight: 18 kg
  • Mounting method: Wall-mounting bracket
  • DC connection type: MC4 (Max. 6 mm² )
