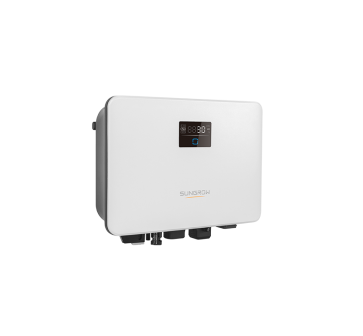

Sungrow SG3.0 RS-S Single - MPPT String Inverter for 600 Vdc System

Sungrow SG3.0 RS-S Single - MPPT String Inverter for 600 Vdc System

High Yield
Compatible with high power PV modules and bifacial modules
Lower startup & wider MPPT voltage range
Built-in smart PID recovery function

Safe and Durable
Integrated Arc fault circuit interrupter
Built-in Type II DC&AC surge protection device
Corrosion protection rating at C5

Smart Management
Real time data (10 seconds refresh sample)
24/7 live monitoring both online and withintegrated display
Online IV curve scan and diagnosis

User Friendly Setup
Plug and play installation
One-click access to iSolarCloud monitoring platform
Light and compact (A4 Size) with optimized heat dissipation design

Key data:

• AC output power - 3000 VA
• Max. AC output current - 13,7 A
• Rated AC voltage - 220 / 230 / 240 V
• AC voltage range - 154 Vac - 276 Vac

• Recommended max. PV input power -4,5 kWp
• Max. PV input voltage - 600 V
• Max. PV input current - 16 A
• Min. operating PV voltage / Start-up input voltage - 40 V / 50 V
• MPP voltage range for nominal power - 40-560 V
• Number of independent MPP inputs - 1

• Degree of protection - IP 65
• Dimensions (W x H x D) - 320 x 225 x 120 mm
• Weigh - 6 kg
• Display - LED digital display & LED indicator
• Communication - Ethernet / WLAN / RS485 / DI (Ripple control & DRM)
• PV connection type - MC4 (max. 6 mm²)
• AC connection type - Plug and play connector (max. 6 mm²)

More information:

• Sungrow SG2.0/2.5/3.0RS-S Single-MPPT String Inverter for 600 Vdc System. Datasheet
• Sungrow grid-connected 1-phase inverter. Quick Installation Guide
• The new 1-Phase Sungrow string inverter - brochure/catalog
