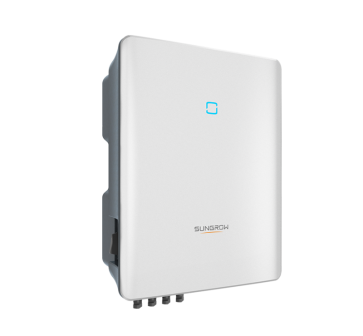

Sungrow SG12RT String Inverter
SKU:
Sungrow SG12RT
Availability: Out of stock
€1,472.00
Product Description
Details
Sungrow SG12RT Multi-MPPT 3-phases String Inverter for 1000 Vdc Solar Systems
EASY AND USER FRIENDLY
- 18 kg compact design
- Unique push-in connectors
- Fast and easy commissioning via App
SAFE AND DURABLE
- Quick arc fault circuit interrupter
- Build-in Type II DC & AC SPD
- High anti-corrosion rating C5
SMART MANAGEMENT
- Smart IV curve scanning
- 24 / 7 Live monitoring
- Remote firmware updates
HIGH YIELD
- Lower startup & wider MPPT voltage
- Compatible with bifacial modules
- Built-in PID recovery function
KEY FEATURES:
- Nominal output AC power: 12000 W
- AC voltage range: 180 V–276 V / 311 V–478 V
- Max. AC output current: 20 A
- Recommended max. PV input power: 18 kWp
- No. of independent MPP inputs: 2
- No. of PV strings per MPPT: 2 / 1
- MPP voltage range: 160 V – 1000 V
- Max. PV input current: 37.5 A (25 A / 12.5 A)
- Max. current for input connector: 30 A
- Display: LED
- Communication: WLAN / Ethernet / RS485 / DI / DO
- Protection: DC reverse connection/AC short-circuit/Leakage current protections; DC switch; Arc fault circuit interrupter (AFCI)
- Degree of protection: IP65
- Dimensions (WxHxD): 370 x 480 x 195 mm
- Weight: 18 kg
- Mounting method: Wall-mounting bracket
- DC connection type: MC4 (Max. 6 mm² )
