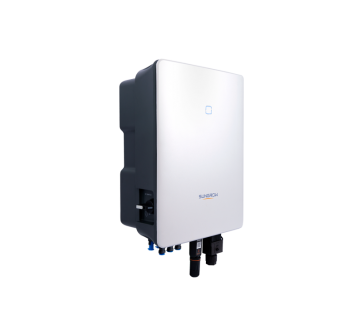

Sungrow SG 8.0 RT Multi-MPPT String Inverter for 1000 Vdc System

Sungrow SG 8.0 RT Multi-MPPT String Inverter for 1000 Vdc System

High Yield
Compatible with bifacial modules
Lower startup & wider MPPT voltage range
Built-in PID recovery function

Safe and Durable
Quick arc fault circuit interrupter
Built-in Type II DC&AC surge protection device
High anti-corrosion rating C5

Smart Management
Remote firmware updates
24/7 live monitoring
Smart IV curve scan

Easy and User Friendly
18 kg compact design
Unique push-in connectors
Fast and easy commissioning via App

KEY FEATURES:

• Rated AC output power - 8000 W
• Max. AC output current - 13,3 A
• Rated AC voltage:
  3 / N / PE, 220 / 380 V
  3 / N / PE, 230 / 400 V
  3 / N / PE, 240 / 415 V
• AC voltage range - 180V - 276V / 311V - 478V

• Recommended max. PV input power -12 kWpMax.
• PV input voltage - 1100 V
• Max. PV input current - 37.5 A (25 A / 12.5 A)
• Min. PV input voltage / Start-up input voltage - 180V / 180V
• MPP voltage range - 160-1000 V
• Number of independent MPP inputs - 2
• No. of PV strings per MPPT - 2/1

• Degree of protection - IP 65
• Dimensions (W x H x D) - 370 x 480 x 195 mm
• Weigh - 18 kg
• Display - LED
• Communication - Ethernet / WLAN / RS485 / DI / DO
• PV connection type - MC4 (max. 6 mm²)
• AC connection type - Plug and play
