BYD Battery-Box Premium LVS 24.0 & SolarEdge SE5K-RWS Hybrid Inverter Storage Package

SKU: BYD Battery-Box Premium LVS 24.0 & SolarEdge SE5K-RWS

Availability: In stock


* Required Fields


Worldwide delivery


Product Description

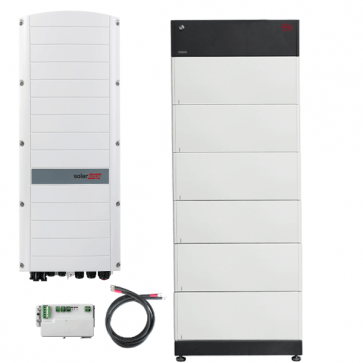

BYD Battery-Box Premium LVS 24.0 & SolarEdge SE5K-RWS Hybrid Inverter Storage Package

48 V Energy Storage Package Scope of delivery:
BYD Battery-Box Premium LVS 24.0 set:
   1 x BYD BATTERY-BOX PREMIUM LVS Base plate+on top PDU (Power distribution unit)
   1 x BYD BATTERY-BOX PREMIUM LVS BMU (Battery Management Unit)
1 x SolarEdge SE5K-RWS STOREDGE Three Phase HYBRID inverter
1 x SolarEdge Energy Meter SE-MTR-3Y-400V-A with Modbus
1 x Battery connection cable 50mm²/2x2m/M8-M8 kit
1 x Patch cable 2m (CAT5)

BYD Battery-Box Premium LVS features:

  • Usable capacity: 24.0 kWh
  • Nominal voltage: 51.2 V
  • Max. Output current: 250A
  • Peak Output current: 360A, 5s
  • Operating Voltage Range: 40-57,6 V
  • Operating temperature: -10 °C to +50 °C
  • Communication: CAN/RS485
  • Round trip energy efficiency: >= 95 %
  • Certification: VDE2510-50 / IEC62619/ CE / CEC / UN38.3
  • Protection rating: IP55
  • Applications: ON Grid / ON Grid + Backup / OFF Grid
  • Extendable anytime: LVS 4-16 (4.0-16.0kWh) in parallel up to 16  towers for a maximum size up to 256 kWh
  • Dimensions (H/W/D): 1693x650x29
  • Weight: 292,5 kg
  • Warranty: 10-year manufacturer guarantee

    CAUTION: Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

More information:

SolarEdge SE5K-RWS Hybrid Inverter key features:

  • Simple installation with single inverter for managing both PV production and battery storage
  • More energy using DC-coupled solution architecture that stores PV power directly to the battery without AC conversion losses
  • Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
  • Designed to eliminate high voltage during installation, maintenance or firefighting for enhanced safety
  • Built-in module-level monitoring and full visibility of battery status, PV production, and self-consumption data
  • Allows connection of low voltage 48V batteries from multiple battery vendors to provide greater flexibility
