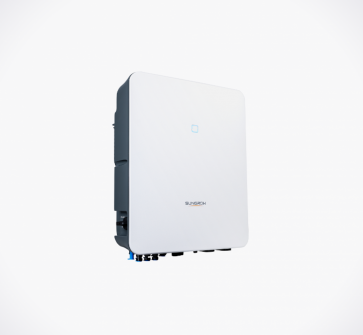

Sungrow SH8.0RT Hybrid Three Phase Residential Solar Inverter

Sungrow SH8.0RT Hybrid Three Phase Residential Solar Inverter
Hybrid storage inverter for self-consumption increase

Flexible Application
150 - 600 V wide battery voltage range
Supports parallel connection with full communication between inverters
Provides 100 % unbalanced loads in backup mode

Energy Independence
Seamless transition to backup mode for protection against power outages
Fast charging / discharging to meet the demand of higher consumption and energy trading

Smart Management
High self-consumption with optimized built-in EMS
Free online monitoring to enhance energy management for end users, installers and retailers
Remote firmware updates and customizable settings

Easy Installation
Unique push-in connectors for time-saving installation
Touch free commissioning with smartphone
Lightweight and compact

The following high voltage Batteries are compatible:

• BYD Battery Box Premium HVM and BYD Battery Box Premium HVS
• LG Chem RESU 7H - 400V lithium-ion storage battery (Type R)
• LG Chem RESU 10H - 400V lithium-ion storage battery (Type R)

In case of a grid failure this 3-phase hybrid inverter will automatically switch into backup mode. Within less than 20 ms a bypass switch will open and all loads connected to the backup port will be supplied by the battery and PV.
During an outage, this 3-phase hybrid inverter will use excess PV energy to charge the battery.  After an overnight blackout with an empty battery in the morning, this 3-phase hybrid inverter will recharge the battery with the first beams of light, for ready the next blackout.

Recommended Max. PV input power - 12000 W
Max. PV input voltage - 1000 V
Rated AC output power - 8000 W
Rated AC voltage - 3/N/PE;  220/380V;  230/400V;  240 / 415 V
Dimensions (W x H x D) - 460 x 540 x 170 mm
Weigh - 27 kg
Mounting method - Wall-mounting bracket
Standard warranty - 10 years
