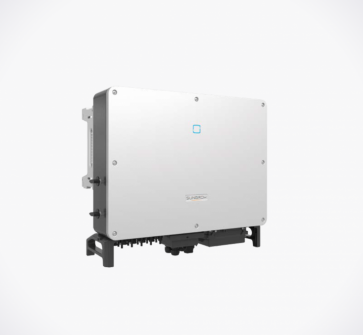

Sungrow SG40CX Multi-MPPT String Inverter

Sungrow SG40CX Multi-MPPT String Inverter
3 Phase Inverter for 1000 Vdc System

HIGH YIELD
- 3 MPPTs with max. efficiency 98.6%
- Compatible with bifacial PV modules
- Built-in PID recovery function

LOW COST
- Compatible with Al and Cu AC cables
- DC 2 in 1 connection enabled
- Cable free communication with optional Wi-Fi

SMART O&M
- Touch free commissioning and remote firmware upgrade
- Online IV curve scan and diagnosis
- Fuse free design with smart string current monitoring

PROVEN SAFETY
- IP66 and C5 protection
- Type II SPD for both DC and AC
- Compliant with global safety and grid codes

Max. PV input voltage - 1100 V
Max. PV input current - 104 A
No. of independent MPP inputs - 4
Max. number of PV strings per MPPT - 2
AC output power - 44 kVA @ 40 °C 400Vac /  40 kVA @ 45 °C 400Vac
Max. AC output current - 66.9 A
Nominal AC voltage - 3 / N / PE,  230 / 400 V
AC voltage range - 312-528 V
Degree of protection - IP 66
Dimensions (W x H x D) - 782 x 645 x 310 mm
Weigh - 58 kg
Display / Communication - LED, Bluetooth+APP / RS485, Optional: WLAN, Ethernet
Manufacturer Warranty - 5 years. (Can be extended to 20 years)

More information:

• Sungrow SG33/40/50CX Multi-MPPT String Inverters for 1000 Vdc Systems. Datasheet
• Sungrow SG33/40/50CX Multi-MPPT String Inverters. User Manual
