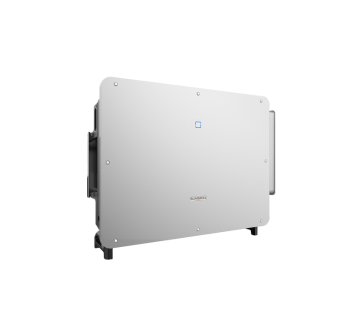

Sungrow SG125CX-P2 Multi-MPPT String Inverter for 1000 Vdc System

SKU: Sungrow SG125CX-P2

Availability: In stock

€5,340.00

* Required Fields

Product Description
Details

Sungrow SG125CX-P2 Multi-MPPT String Inverter for 1000 Vdc System

High Yield
12 MPPTs with max. efficiency 98.5%
DC 15A current input, compatiable with over 500W+ PV module
Dynamic shading optimization mode

Lower Investment
Compatible max. 240mm² Al AC cables
Drawer-style cable sealing plate support AC cable pre-assembly

Smart O&M
Key component diagnosis and protection
Smart IV Curve Diagnosis
Grid fault record function, easy for remote O&M

Proven Safety
IP66 protection and C5 Anti-corrosion
DC Type I+II SPD, AC Type II SPD
Support AFCI 2.0 function

Basic technical data

  • Max. AC output power - 125 kVA (415 V @ 50 ° C) (when PV voltage over VDC)
  • Max. AC output current - 181,1 A
  • Rated AC voltage: 3 / N / PE, 230 / 400 V;  3 / N / PE, 240 / 415 V
  • AC voltage range - 320 - 480 V
  • Recommended max. PV input power - 175 kW
  • Max. PV input voltage - 1100 V
  • Max. PV input current - 360 A (30 A x 12)
  • Min. PV input voltage / Start-up input voltage - 180 V / 200 V
  • MPP voltage range - 180-1000 V
  • Number of independent MPP inputs - 12
  • Number of PV strings per MPPT - 2
  •  Degree of protection - IP 66
  • Dimensions (W x H x D) - 1020 x 795 x 360 mm
  • Weigh - 87 kg
  • Display - LED, Bluetooth+APP
  • Communication - RS485 / Optional: WLAN, Ethernet
  • PV connection type - Evo2 (Max. 6 mm² )
  • AC connection type - OT / DT terminal (Max. 240 mm²)
