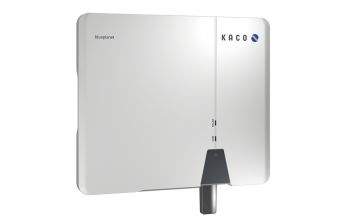

Kaco blueplanet 5.0 NX3 M2

Kaco blueplanet 5.0 NX3 M2

Three-phase multi-MPPT inverters for small residential solar PV plants

The solar PV inverters of the new blueplanet NX3 M2 family master any system design. They achieve this feat thanks to their 2 MPP trackers, the extremely wide operating range and very low starting voltage.
Both MPP trackers accept the inverter's nominal power - east-west facing roofs and other contorted architectures are thus part of your repertoire.
To round off the successful performance the blueplanet NX3 M2 have the RS485 interface. A smart meter can be connected to this to meet the demand for zero feed-in or dynamic power control.

Benefits:

• Functional, robust design for easy and flexible ways of installation
• User-friendly apps for Wi-Fi setup and monitoring
• DC SPD Type II, AC SPD Type III
• Integrated DC-switch
• DC reverse polarity protection
• Sunclix connectors

Key data:

• Rated active AC power - 5000 W
• Voltage range (Ph-Ph) - 160 V - 300 V
• Max. AC current - 8.0 A
• Max. recommended PV generator input power 7500 W
• Rated DC voltage / start voltage - 630 V / 180 V
• Max. input current - 2 x 16 A
• Protection class - IP65
• DC connection - DC plugs (Phoenix Contact Sunclix)
• AC connection - plug-in connector
• Display - LED indication (status, fault, communication)
• Communication Interface - WiFi / RS485
• Dimensions (H x W x D) - 435 x 503 x 183 mm
• Weight - 16 kg

More information:

• Kaco blueplanet 3.0 - 5.0 NX3 M2 Datasheet
• Kaco blueplanet 3.0 - 20.0 NX3 M2 Operation Instructions
• Kaco blueplanet 3.0 - 20.0 NX3 M2 Extended technical Data
