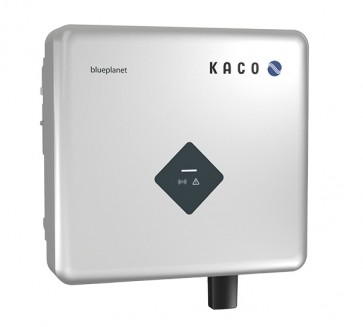

Kaco Blueplanet 3.0 NX1 M2

Kaco Blueplanet 3.0 NX1 M2

Transformerless, single-phase string inverter for residential solar PV plant

With the blueplanet NX1 M2, KACO new energy presents its next generation of 1-phase inverters. Their hallmarks are particularly effortless design, commissioning and operation. The designation M2 stands for the number of MPP trackers, both of which can be loaded with 3,500 watts each. The blueplanet NX1 M2 are therefore suitable for any roof geometry.

The very wide design window of 100 V starting voltage - 80 V is the lowest operating voltage - to 580 V maximum DC voltage also contributes to easy planning. For operators, this means the greatest possible solar harvest at any time of day, in any season.

Configuration and commissioning are quickly completed via the self-explanatory installation app. Afterwards, installers and operators can communicate with the inverters conveniently via WiFi. The blueplanet NX1 M2 operate in whisper mode with a minimum self-consumption of less than one watt.

Benefits:

• Simple installation, also outdoors (IP65)
• Quick Wi-Fi setup with App
• Smart monitoring with user-friendly App
• Lightweight (11 kg)
• Quiet performance with low 25dB levels

Key data:

• Rated active AC power - 3000 VA
• Voltage range (Ph-Ph) - 180 - 290 V
• Max. AC current - 15.0 A
• Max. recommended PV generator input power 4500 W
• Rated DC voltage / start voltage - 360 V / 100 V
• Max. input current - 2 x 12 A
• Protection class - IP65
• DC connection - DC plugs (SUNCLIX)
• AC connection - plug-in connector
• Display - LEDs + APP
• Communication Interface - WiFi
• Dimensions (H x W x D) - 376 x 355 x 145 mm
• Weight - 11 kg

More information:

• Kaco blueplanet 3.0 - 5.0 NX1 M2 Datasheet
• Kaco blueplanet 3.0 - 5.0 NX1 M2 Manual
