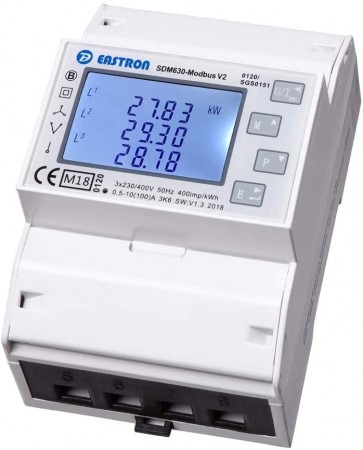

Kaco NX3 SMART METER - Eastron SDM 630
Smart meter Eastron SDM 630 Series is a three-phase multifunction 100A direct fed DIN rail mounted electricity meter. It can measure and display the characteristic of 1p2w ,3p3w and 3p4w supplies.
SDM630 requires Mains Voltage inputs (live in and live out, neutral in and neutral out) in order to operate, it is self-supplied so does not require an external auxiliary supply.
Features:
- Three Phase 100A Direct Fed
- MID B+D Certified
- UL Registered
- Accuracy Class 0.5 (Active Energy)
- Bi-directional Measurement for kW and kWh
- Configurable Pulsed output (Import/ Export / Nett kWh)
- Modbus (SDM630Modbus) or Mbus (SDM630Mbus)
- Multi Parameter measurement
- Multi-Tariff option (SDM630 Modbus-MT)
- Free Configuration software
