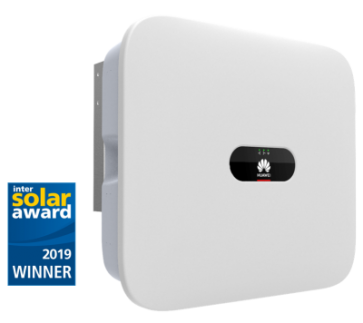

HUAWEI Smart String Inverter SUN2000-20KTL-M2

HUAWEI Smart String Inverter SUN2000-20KTL-M2
Digital PV Solution for Upgraded Safety & Better Experience

• Compatible to Huawei Smart PV Optimizer SUN2000-450W-P, enables more modules on rooftop
• Up to 30% higher yields contributed by optimizing each panel performance
• AI Powered AFCI to proactively mitigate fire risk
• Communication:
  - RS485
  - Ethernet via Smart Dongle-WLAN-FE (Optional)
  - 4G / 3G / 2G via Smart Dongle-4G (Optional)
• Inverter with no quick wear parts, failure rate < 0.5%

Features:

• Recommended max. PV input power: 30000 Wp
• Max. input voltage: 1080 V
• Number of MPP trackers / Input number per MPP tracker: 2 / 2
• Rated output power: 20 kW
• Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
• Max. output current: 33,5 A
• DC and AC surge protection: compatible with TYPE II protection class according to EN/IEC 61643-11
• Cooling: Natural Convection
• Display: LED Indicators; Integrated WLAN + FusionSolarApp
• Degree of protection: IP65
• Weight (with mounting plate): 25 kg
• Dimension (W x H x D): 525 x 470 x 262 mm
