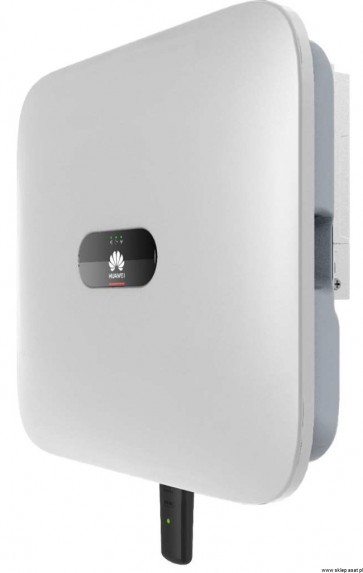

HUAWEI Three phase solar inverter SUN2000-5KTL-M1

SKU: HUAWEI SUN2000-5KTL-M1

Availability: In stock

€1,245.00

* Required Fields

Huawei

Worldwide delivery




Product Description
Details

HUAWEI Three phase solar inverter SUN2000-5KTL-M1

Smart PV string inverter:

  • High efficiency inverter topology, Max. Efficiency 98.6%
  • Can be combined with Huawei Smart PV Optimizer SUN2000-450W-P, enables more modules on rooftop
  • Up to 30% higher yields contributed by optimizing each panel performance
  • Hybrid inverter with battery input
  • Integrated battery interface for future quick battery connection without extra device or retrofit cost
  • Ripple control receiver interface
  • AI-based arc detection AFCI
  • Communication:
    - Smart dongle-WLAN-FE (integrated)
    - Smart dongle-4G (optional)

Features:

  • Recommended max. PV input power: 7500 Wp
  • Max. input voltage: 1100 V
  • Number of MPP trackers / Input number per MPP tracker: 2 / 1
  • Battery Input operating voltage range: 600 V - 980 V
  • Battery Input Max. operating current: 16 A
  • Rated output power: 5 kW
  • Rated output voltage: 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W / N+PE
  • Max. output current: 8,5 A
  • DC and AC surge protection: Surge arresters SPD2
  • Degree of protection: IP65
  • Weight (incl. mounting bracket): 17 kg
  • Dimension (incl. mounting bracket): 525 x 470 x 146,5 mm
