GoodWe EzLogger Pro - Data Logger

GoodWe EzLogger Pro - Data Logger

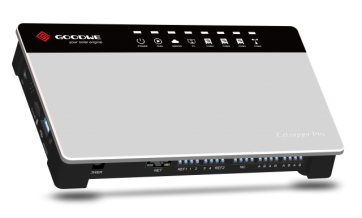

The EzLogger Pro is a self-developed monitoring device by GoodWe. In combination with a GoodWe solar inverters, it can easily read and record all key plant data and constantly transmit the data to the GoodWe portal via the internet.

The EZLogger links to the inverter via RS485, connects to a PC via Ethernet, and transmits data to the GoodWe monitoring software EzExplorer and the GoodWe portal.
EzLogger Wi-Fi links to the inverter via RS485 and connects with the wireless router via a built-in Wi-Fi communication module, and transmits data to the GoodWe portal. Wi-Fi communication distance is 15m (reference value)

Up to 60 PV inverters can be connected.
The number of devices connected to a single RS485 port shall not exceed 20
Max. lenght of the ethernet connection: 100m

Note: The EZLogger Pro cannot be used in combination with Goodwe hybrid inverters such as the ES, EM or ET series.

More information:

• GoodWe EzLogger Pro Datasheet
