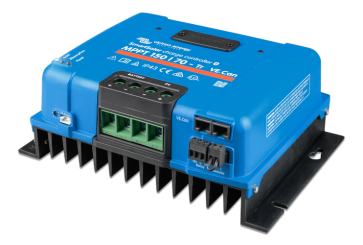

Victron SmartSolar charger MPPT 250/70 -Tr VE.Can

SKU: SCC125070421

Availability: In stock

€815.00

* Required Fields

Victron

Worldwide delivery




Product Description
Details

Victron SmartSolar charger MPPT 250/70 -Tr VE.Can
Solar charge controller

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

Ultra Fast Maximum Power Point Tracking
The MPPT 250/70 VE.Can SmartSolar charger connects to a PV array of 250 Volt Voc (max.), and will automatically detect and charge your 12, 24, or 48V battery bank with charge current 70 A.

Control Your Charger Remotely
The SmartSolar charger MPPT 250/70 VE.Can can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units
The VE.Can SmartSolar chargers are equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply “daisy chained” to each other with a single RJ45 cable between the individual units.
When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control
If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).

SmartSolar Control Display
The VE.Can SmartSolar charger is equipped with a VE.Direct port like other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery.

Note:
An optional pluggable LCD display control provides live-data, set-up and management, straight from the face of the device.

The multiple controller solution
up to 25 units can be synchronised with VE.Can

VE.Direct or VE.Can
For a wired data connection to a Color Control GX, other GX products, PC or other devices

Programmable relay
Can be programmed to trip on an alarm, or other events.


Battery charge voltage: 12/24/48V Auto Select (36V: manual)
Rated charge current - 70A
Weight - 3,2 kg
Dimensions (hxwxd, mm) - 185x250x95

More information:
