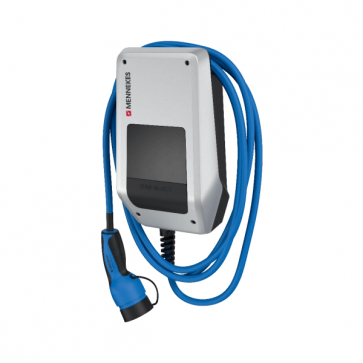

Mennekes Wallbox Amtron Compact 3.7 / 11 C2

Mennekes Wallbox Amtron Compact 3.7 / 11 C2
Charging point for Electric Vehicles

Mennekes Wallbox Amtron Compact 3.7 / 11 C2 is a charging device for use in private parking spots, garages and carports, access to which is limited.
Mennekes Wallbox Amtron Compact 3.7 / 11 C2  is stationary wall mounting equipment intended for permanent installation for indoor and outdoor use.

The AMTRON design concept directly incorporates the cable suspension. It is also extremely practical because cable is not on the floor and does not get dirty. It's don't needs to always keep cable it in the the boot rather you can simply hang it up on the wallbox in an orderly manner.

Main features:

• Charging power: 3,7 / 11kW
• Rated voltage Un: 230 / 400 V AC ±10 %
• Rated current InA : 16 A
• Charging current (Mode 3) InC: 16 A, 1 phase / 3 phase
• Degree of protection: IP 44
• LED status display
• Operating temperature: -25°C to +40°C
• Relative humidity: max 95% (non-condensing)
• Dimensions (H/W/D): 361 x 207 x 146 mm
• Weight: 5 kg

More information:

• AMTRON® Compact 3,7 / 11 C2 Operating and installation manual
