KOSTAL PIKO 36 EPC

SKU: KOSTAL PIKO 36 EPC

Availability: In stock

€3,337.00

* Required Fields

Kostal

Worldwide delivery




Product Description
Details

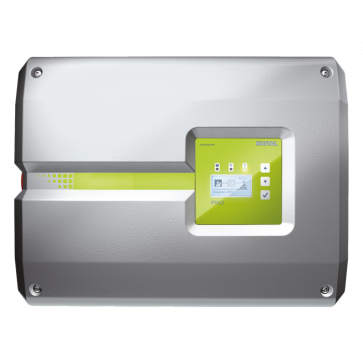

KOSTAL PIKO 36 EPC
Smart Power – Optimised costs and high levels of safety

Smart Project Design
Optimised generator design with system voltage of up to 1,100 V
Integrated KOSTAL Smart AC Switch takes the place of the external circuit breaker
KOSTAL Smart DC Guard protects the generator. Loss-free and requires no maintenance. No need for string fuses.
Simple DC installation at an attractive cost without any string distribution boxes
Flexible generator design through overpopulation of up to 50 %

Smart connected
Tried and tested communication via RS485 bus integrated as standard
Compatible with many plant controllers and data loggers, so you can use the monitoring system you prefer
Integrated feed-in management makes the system ideal for direct PV energy sales

Efficient and reliable

Smart performance
In the event of an error, individual strings are shut down to maintain high availability
The connected PV strings are monitored in pairs for optimum monitoring and service
Integrated, certified grid service functions ensure reliable operation

Smart installation
Optimum protection against dust and water for outdoor use (protection class IP 65)
Prepared for overvoltage protection on the AC, DC and communication side
Cost-optimised 4-wire AC connection, no neutral conductor required

Technical data Kostal Piko 36 EPC:

  • Max. PV power (cos φ = 1): 54kWp
  • Max. input voltage (Udcmax): 1100 V
  • Number of independent MPP trackers: 1
  • Rated output, cos φ = 1 (Pac,r): 36 kW
  • Grid connection: 3~, 400V, 50 Hz
  • Warranty: 5 years (Optional warranty extension - 10/15 years)
  • Internal protection according to IEC 60529: IP65
  • Cooling principle: regulated fans
  • Dimensions (w x h x d): 700 x 540 x 265 mm
  • Net weight: 51 kg
