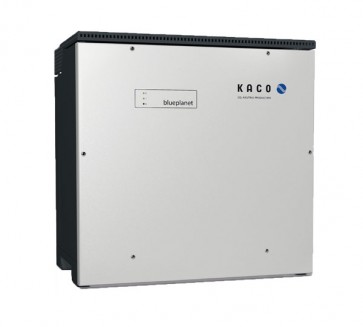

KACO blueplanet 105.0 TL3

SKU: KACO blueplanet 105.0 TL3

Availability: In stock


* Required Fields


Worldwide delivery


Product Description

KACO blueplanet 105.0 TL3 - string inverter for commercial and industrial PV systems

Start saving costs
The blueplanet 105.0 TL3 should meet most of your requirements. One reason for this: the line voltage of 400 V. It allows you to connect the inverter to the transformer on site - and combine it with the blueplanet 20.0 TL3 for additional MPP trackers.
You can implement grid and plant protection also without the usual costs: the necessary section switches are integrated in the blueplanet 105.0 TL3 and can be activated directly by the Powador-protect control unit. In addition, the inverter is suitable for both 1500 V and 1000 V PV modules.
The inverter has SPD type 1+2 arresters on the DC side to protect against overvoltage; the arresters for the AC side as well as the RS485 and Ethernet interfaces can be easily retrofitted.

The blueplanet 105.0 TL3 owes its high DC:AC design ratio of 1.5:1 to innovative silicon carbide power transistors. Their extreme thermal load capacity also makes it a "desert inverter" with late power derating.


  • Cost-saving due to 380 V / 400 V / 480 V line voltage and integrated section switches
  • Optimised for PV modules with 1000 V and 1500 V
  • Highest efficiency and overload capacity through silicon carbide technology
  • High power density for easy handling and logistics
  • Special properties for extreme environmental conditions
  • Lean commissioning and updates via remote services
  • Decentralised design or 'Virtual Central' concept possible (opt.)
  • Anti-PID solution available (opt.)
  • Compatible with Tigo MLPE solutions (opt.)

Key data:

  • Rated AC output - 99900 VA
  • Voltage range (Ph-Ph) - 300 V - 437 V
  • Max. AC current - 3 x 144,5 A
  • Max. recommended PV generator input power 157500 W
  • Rated DC voltage / start voltage - 620V / 675 V
  • Max. input current - 183 A
  • Protection class - IP66 / NEMA 4X
  • DC connection - cable lug, max. 240 mm² Cu or Al
  • AC connection - cable lug, max. 240 mm² Cu or Al
  • Display - LEDs
  • Interface: Ethernet (Modbus TCP, Sunspec); RS485 (KACO-protocol); USB ; optional 4-DI
  • Dimensions (H x W x D) - 719 x 699 x 460 mm
  • Weight - 78,2 kg
