Huawei LUNA2000-10-S0 battery pack

SKU: Huawei LUNA2000-10-S0

Availability: In stock


* Required Fields


Worldwide delivery


Product Description

Huawei LUNA2000-10-S0 battery pack
Energy storage module with Lithium-Ion technology

The new modular Huawei LUNA2000-10-S0 (10 KWH) is a high voltage lithium battery which will be compatible with a wide range of self-consumption inverters especially with the Huawei SUN2000 2-6KTL-L1 single-phase inverters. Compatible with the latest generation of Huawei SUN2000 KTL-L1 single-phase and Huawei SUN2000 KTL-M0 and Huawei SUN2000 KTL-M1 three-phase hybrid inverters.

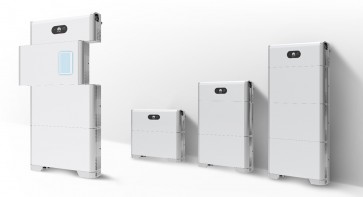

The modular system consists of a “Power Control Module” block on top and battery modules which are stackable together. This allows for easy and quick installation. The LUNA2000 batteries also allows for parallel connection of up to 20kWh, 25kWh or 30kWh because of its modular design of 5kWh in its different models of 10 and 15kWh.
Each battery pack has a built-in energy optimizer and supports independent charge and discharge management.

Main Advantages:

  • Compact size and easy installation
  • Pack Level Energy Optimization
  • High energy density and efficiency
  • 100% Depth of Discharge
  • Excellent safety
  • Parallel connection - up to 30kWh, Max. 2 systems in parallel operation (up to 6 battery modules)
  • Quick Commissioning
  • Automatically Detected in App

Key Features:

  • Battery usable energy: 10 kWh
  • Max. output power: 5 kW
  • Peak output power: 7 kW, 10 s
  • Nominal voltage (single phase system/L1): 360 V
  • Operating voltage range (single phase system/L1): 350 - 560 V
  • Nominal voltage (three phase system/M1): 600 V
  • Operating voltage range (three phase system/M1): 600 - 980 V
  • Display: SOC status indicator, LED indicator
  • Communication: RS485 / CAN (only for parallel operation)
  • Operating temperature: -10°C ~ + 55°C
  • Cooling: Natural convection
  • Protection rating: IP66
  • Noise emission: <29 dB
  • Cell technology: Lithium-iron phosphate (LiFePO4)
  • Compatible inverters: Huawei SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, Huawei SUN2000-3/4/5/6/8/10KTL-M1
  • Weight: 113,8 kg incl. floor base (Power control module - 12 kg, One battery module - 50 kg)
  • Dimension (W x D x H): 670 x 150 x 1010 mm (Power control module - 670x150x240mm, One battery module - 670x150x360mm)
  • 10 Years warranty

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

More information:

Will be available in Q1-2021
