Fronius Wattpilot Go 22 J

SKU: Fronius Wattpilot Go 22 J

Availability: In stock

€806.00

* Required Fields

Fronius

Worldwide delivery




Product Description
Details

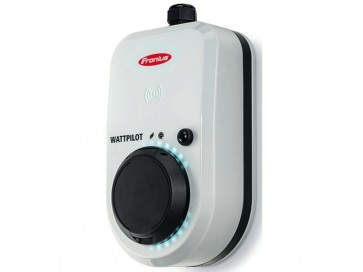

Fronius Wattpilot Go 22 J

The first Fronius Wallbox Electric vehicles chargers - Fronius Wattpilot - comes in two versions: HOME for the household and for GO as a mobile charging stations. Three types of chargers: Wattpilot Home 11 J (11kW), Wattpilot Go 11 J (11kW) and Wattpilot Go 22 J (22kW) come on the solar market.
Both charging stations are individually and intelligently linked with the Fronius Solar.Wattpilot.App. In addition, both variants have an RFID interface and can charge excess PV energy. The intelligent plug and play charging solution has two different charging modes called Eco and Next Trip.

ADVANTAGES:

  • Main connection: CEE32 plug red 5-pin including neutral conductor
  • Optional adapter set: CEE16 red fused, CEE blue camping plug, safety plug 16A
  • Dynamic PV surplus charging: charging power from 1.38 to 22 kW,  automatic 1- / 3-phase switching
  • Type 2 charging socket with mechanical lock
  • Optional locking of the charging cable
  • Indoor and outdoor installation
  • Integrated 30 mA AC and 6 mA DC residual current device
  • LED status display
  • Network connection: supports WLAN standards 802.11 b/g/n in the 2.4 GHz band with WEP, WPA, WPA2 and WPA3
  • Plug and play charging station
  • Wall bracket, RFID card or ID chip included in the delivery scope
  • Manufacturer's guarantee: 2 years


TECHNICAL DATA:

  • Nominal voltage: 230 V (1-phase) / 400 V (3-phase)
  • Configurable Nominal current: 6-32A (1-phase or 3-phase)
  • Supply line cable cross-section: Min. 6 mm²
  • Protection class: IP 54 (IP 44 with inserted type 2 cable)
  • Dimensions (h x w x d): 146 x 251 x 96 mm
  • Weight: 1,68 kg (3,25 kg incl.packaging)



MORE INFORMATION:
