Fronius Overvoltage protection DC SPD Type 1+2 GEN24

SKU: Fronius DC SPD Type 1+2 GEN24

Availability: In stock

€189.00

* Required Fields

Fronius

Worldwide delivery




Product Description
Details

Fronius Overvoltage protection DC SPD Type 1+2 GEN24
DC surge protection device Type 1+2 for 2 MPP Tracker

The surge protection device type 1+2 for direct and indirect lightning strikes is suitable for use with the Fronius Symo GEN24 Plus and Fronius Primo GEN24 Plus (all power categories) inverters and therefore fulfils the standard requirement of installing a DC fuse near the inverter (according DIN VDE 0100-712, Appendix ZB Section712.534 DE).
The surge protective device is equally applicable for all devices, regardless of whether 1 or 2 trackers are being used. When only one tracker is in operation, one input on the surge protective device remains unassigned.
Thanks to the adjustable, integrated remote signalling function, the system operator is notified automatically viathe Fronius Solar.web (account is required) online portal whenever the surge protective device trips.

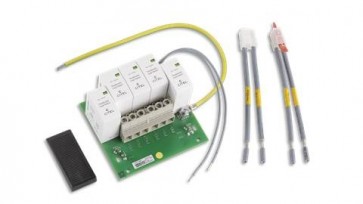

The surge protective device comes as an upgrade kit and can be installed into the inverter connection area in a few minutes.

  • Nominal voltage: 1000 Vdc
  • Highest continuous voltage: 1200 Vdc
  • Connection cross section: PV 6mm², Signal 0,5mm²
