Fronius Ohmpilot 9.0-3
Availability: In stock

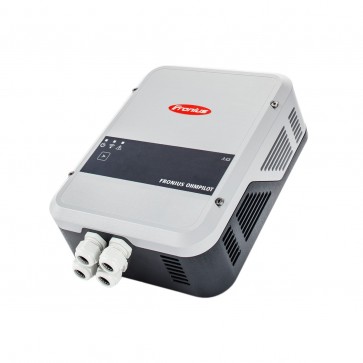

Fronius Ohmpilot 9.0-3 is a consumption regulator designed to use excess solar power to heat water
Optimising self-consumption through the intelligent, continuously adjustable regulation of heat sources.
The Fronius Ohmpilot is a consumption regulator designed to use excess solar power to heat water. Thanks to the continuously adjustable regulation from 0 to 9 kW, surplus PV current can be put to highly efficient use and fed to the consumers in the household. The Fronius Ohmpilot is primarily used to intelligently control heating elements for providing hot water in boilers and buffer storage tanks, but can also be used for infrared heating or towel radiators. Solar power can thus provide a family home with average levels of water consumption with most of their hot water during spring and summer. The result is maximum self-consumption, a reduction in the household’s CO2 emissions and less wear on the building’s main heating system during the summer months.
The advantages at a glance
- Continuously adjustable regulation from 0 to 9 kW
- Easy installation
- Minimum temperature setting
- Dynamic feed-in limitation ≥ 50% - also with Fronius Energy Package
- Coordination with other heat sources, e.g. gas water heaters
- Combination with heat pumps
- Legionella prevention system
- Proven compliance with EMV directives
Installing the Fronius Ohmpilot could not be easier thanks to straightforward commissioning via the dedicated website as well as a simple communication connection via WLAN. The Fronius Ohmpilot also protects the grid by cleanly and reliably activating the consumers, leaving you as the installer fully equipped for the demands of today and tomorrow.
The Fronius Ohmpilot is compatible with all Fronius inverters. A Fronius Datamanager 2.0 and a Fronius Smart Meter are required to use the device. The Fronius Datamanager is integrated as standard in Fronius Symo, Fronius Symo Hybrid, Fronius Primo, Fronius Galvo and Fronius Eco inverters. The Fronius Datamanager and the Fronius Smart Meter can be retrofitted in existing inverters at any time.
