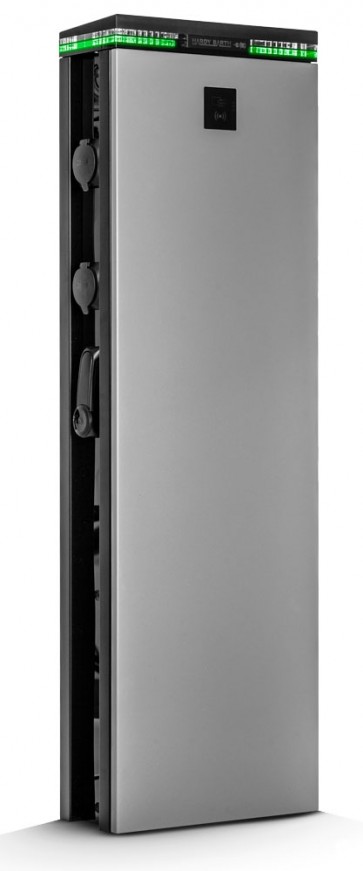

HardyBarth Charging Pole cPP1 2T44, 2 x Type 2 with RFID

HardyBarth Charging Pole cPP1 2T44, 2 x Type 2 with RFID
EV charging pole for companies and public areas

Hardy Barth charging solutions for the private and public sector - fast, fully automatic charging of your electric vehicle. No matter whether Tesla Model S, smart "fortwo" electric drive, VW e-Golf, BMW i3 or Renault ZOE, solutions are characterized by simple integration into your existing system and intelligent load management.

Key technical data:

• Mains connection: 3-phases, 400V, 63A, 50 Hz
• Rated voltage: 400V
• Rated current: 63A
• Charging points: 2 x 22 kW
• Charging socket according to IEC 62196-1: 2x type-2 charging socket
• Degree of protection: IP 44
• Protection class: I
• Protective switch: Overvoltage protection, automatic cutout 32A, , DC residual current detection 6mA
• Personal security: RCD type-A 30mA
• Authentication: RFID module (incl. 5 cards) or Key switch (optional)
• Casing: Galvanized sheet steel, powder coated, lockable
• Colours: Door RAL7035, Body RAL9005
• Dimensions (H/W/D): 1411 x 440 x 203 mm
• Weight: 47 kg

Enables control over charging processes:

• Network connection via LAN with Hardy Barth Smart meter eCB1 (Optional)
• Operation conditions via LED-display
• Visualization via webinterface
• Ready for Smart Grid
• GSM communication module (can be added optionally)

More information:

• Hardy Barth Charging Pole cPP1 for companies and public areas. Technical specifications
