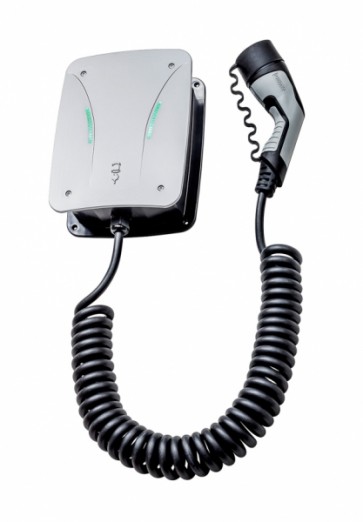

Hardy Barth wallbox - CPµ1 µT13.8 Type 2 with charge cable (spiral cord-4M)

SKU: Hardy Barth wallbox - CPµ1 µT13.8

Availability: In stock


* Required Fields

Worldwide delivery


Product Description

Hardy Barth wallbox - CPµ1 µT13.8 Type 2 with charge cable (spiral cord-4M)
Micro charging station for electric cars

Hardy Barth charging solutions for the private sector - fast, fully automatic charging of your electric vehicle. No matter whether Tesla Model S, smart "fortwo" electric drive, VW e-Golf, BMW i3 or Renault ZOE, solutions are characterized by simple integration into your existing system and intelligent load management.

Key technical data:

  • Power supply: 3-phase 400V / 16 A, 50Hz
  • Rated nominal voltage: 400V
  • Rated nominal current: 20A
  • Maximum charging power: 13,8 kW
  • Charging plug according to IEC 62196-2: Type 2 spiral, 4m (Type 1 optional)
  • Degree of protection: IP 4
  • Protection class: II
  • Protective switch: DC residual current detection 6mA, the ground fault circuit breaker type A and the power circuit breaker with the characteristic "C" must be installed by the customer
  • Conductor cross-section lead: at least 2,5mm2
  • Energy metering is possible in combination with Hardy Barth Smart meter eCB
  • Colour: anthracite/ greyHardy Barth
  • Dimensions (H/W/D): 283 x 196 x 88 cm
  • Weight: 5,6 kg
