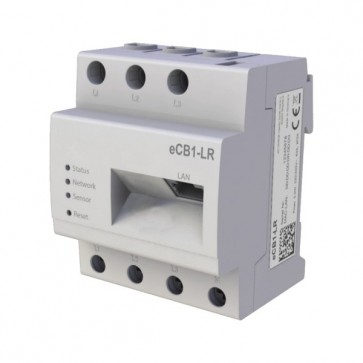

Hardy Barth eCB1-LR Smart controller

Hardy Barth eCB1-LR Smart controller
Intelligent Energy management and 3-phase active power energy meter

Hardy Barth eCB1-LR control unit can conveniently control the charging current of the wallbox, regardless of which inverter or storage system is installed. The measurement takes place independently at the network connection point. Therfore can be exclusively charged the vehicle with PV energy.

- For presentation of the total power consumption per phase and total active power and energy measurement per phase in kW (real time)
- Fully integrated smart meter
- Visualization via webinterface
- Interfaces - LAN (10/100 Mbit) + RS-485
- Storage of consumption data on device
- Top hat rail mounting
- Rated voltage - 230/400 VAC
- Operating voltage - 230 V ±10 %
- Frequency - 50 Hz ±5 %
- Direct measuring up to 63 A
- Converter measurement up to 1000 A
- Operating temperature -25°C...+45°C
- Weight - 0.3 kg
- Size - 88 x 70 x 65 mm
