ABL mounting pole STEMH30 for eMH3 Wallbox

SKU: ABL mounting pole STEMH30 for eMH3

Availability: In stock


* Required Fields

Worldwide delivery


Product Description

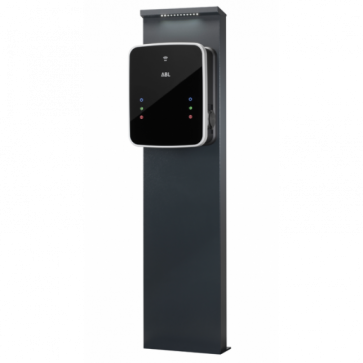

ABL mounting pole STEMH30 for eMH3 Wallbox

The mounting pole STEMH30 is designed for the outdoor installation of all ABL eMH3 Wallboxes. The pole model is compact  metal  housing design and the rear housing access protecting the internal components.
The integrated LEDs with twilight sensor at the top end ensure sufficient illumination of the Wallbox, even in difficult lighting conditions. The installation of a suitable back-up fuse (2 A, 1-pole, C-characteristic) for the integrated power supply unit is recommended. For maximum stability, ABL recommends installing the pole STEMH10 on concrete foundation.

Key technical data:
Type - Metal mounting pole with rear access
Fixing type - Screw fixings for installation on concrete foundation (not included)
Material (mounting pole) - Electrogalvanised sheet metal (DC01+ZE25/25-03)
Color - RAL 7016 coarse texture, satin finish
Degree of protection (housing) - IP54
Dimensions (H/W/D) - 1647 x 405 x 180 mm (packaging - 1650 x 430 x 210 mm)
Weight - 28 kg

More information:
