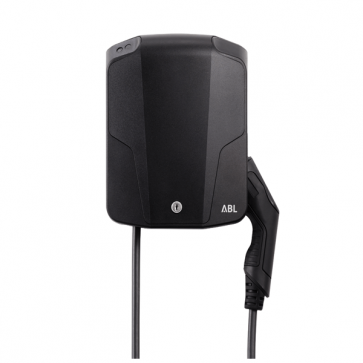

ABL eMH1 Basic Wallbox 11 kW with 6m cable
The easy solution for EV charging at home

The Wallbox eMH1 Basic 11 kW is a new addition to the ABL eMH1 chargers line. The field of application of the eMH1 Wallbox Basic is very suitable for the household area. Thanks to its extremely compact dimensions and high charge power, it is the perfect solution for efficient charging of electric vehicles.
To connect the eMH1 Wallbox Basic, all you need is a Type A RCCB (residual current circuit breaker) onsite in the domestic power distribution.

This new wallbox has some attractive features:

  • DC fault current detection: integrated DC residual current detection. However, the residual current operated circuit breaker has been removed and wallbox must therefore be installed externally
  • Welding detection capability: the charging procedure will be terminated if a welded contactor is detected
  • Protective temperature monitoring: if overheating is detected the system will automatically reduce the charging current
  • Compact, space-saving design
  • Suitable for group solutions
  • Lockable access to switching devices
  • Coloured LEDs to indicate charging status
  • Suitable for load management
  • Dedicated software to adjust charging current in 1A increments

Key technical data:
Rated input voltage - 230 / 400 V
Rated input current - 16 A
The charging cable is equipped with a type 2 plug.
Output voltage - 230 / 400 V
Max. charging current - 16 A
Max. output - 11 kW
Communication - Mode 3 (acc. with IEC 61851-1)
Operating status indicator - LED (stand-by, EV detected, charging)
Interface - RS485
Operating temperature: -30°C to 50°C
Relative humidity - 5 to 95%, no condensation
Degree of protection - IP54
Dimensions (H/W/D) - 272 x 221 x 116 mm (packaging - 355 x 330 x 270 mm)
Weight - 4,5 kg
Delivery includes: Wallbox, printed installation guide, drilling template, mounting kit, 2 keys.
