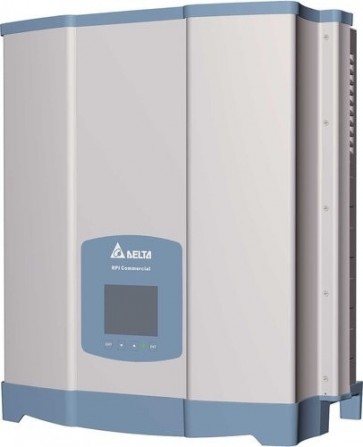

Delta RPI M30A_120
Availability: In stock
Delta RPI M30A_120 high efficiency three phase transformerless inverter - perfect choice for large-scale solar PV systems, such as those used in the commercial or agricultural sectors
Maximum profitability and versatility
The compact RPI M30A_120 transformerless three-phase inverter features a nominal 30 kVA output but enables maximum power output up to 33 kVA. This feature allows the inverter to provide 10 % more power and higher yields when compared to other 30 kVA inverters on the market. The inverter features an excellent power density-to-size ratio and very high max. efficiency of 98.5 %.
Flexible System Design
For the system planner, maximum flexibility is ensured thanks to a wide input voltage range of 200 - 1000 V and 2 MPP trackers. The RPI M30A_120 supports symmetrical and asymmetrical loading (33/67 %). The new unit is compatible with major types of PV modules and the robust IP65 rated enclosure allows outdoor installation.
The lightweight and compact design of the RPI M30A_120 greatly simplifies installation. The inverter includes a unique wall mount bracket in the scope of delivery, allowing the unit to be easily installed on a variety of wall surfaces.
