BYD Battery-Box Premium LVS 4.0 & SMA Sunny Island 4.4M solar battery inverter Storage Package

SKU: BYD Battery-Box Premium LVS 4.0 & SMA Sunny Island 4.4M

Availability: In stock

€4,354.00

* Required Fields

BYD

Worldwide delivery




Product Description
Details

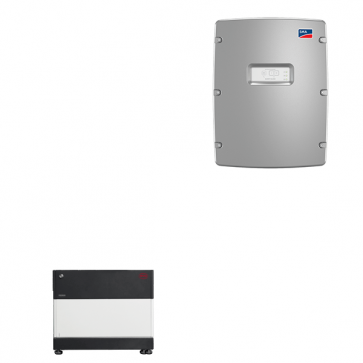

BYD Battery-Box Premium LVS 4.0 & SMA Sunny Island 4.4M solar battery inverter Storage Package

48 V Energy Storage Package Scope of delivery:
BYD Battery-Box Premium LVS 4.0 set:
   1 x BYD BATTERY-BOX PREMIUM LVS Base plate+on top PDU (Power distribution unit)
   1 x BYD BATTERY-BOX PREMIUM LVS BMU (Battery Management Unit)
   1 x BYD BATTERY-BOX PREMIUM MODULE LVS 4.0
1 x SMA Sunny Island 4.4M solar battery inverter

BYD Battery-Box Premium LVS features:

  • Usable capacity: 4.0 kWh
  • Nominal voltage: 51.2 V
  • Max. Output current: 65A
  • Peak Output current: 90A, 5s
  • Operating Voltage Range: 40-57,6 V
  • Operating temperature: -10 °C to +50 °C
  • Communication: CAN/RS485
  • Round trip energy efficiency: >= 95 %
  • Certification: VDE2510-50 / IEC62619/ CE / CEC / UN38.3
  • Protection rating: IP55
  • Applications: ON Grid / ON Grid + Backup / OFF Grid
  • Extendable anytime: LVS 4-16 (4.0-16.0kWh) in parallel up to 16  towers for a maximum size up to 256 kWh
  • Dimensions (H/W/D): 528x650x29
  • Weight: 67,5 kg
  • Warranty: 10-year manufacturer guarantee

    CAUTION: Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

More information:

SMA Sunny Island 4.4M solar battery inverter - the most reliable all-purpose solution for your home and commercial applications

  • Warranty period extended to 10 years
  • Can be immediately and easily configured and monitored via smartphones or tablets
  • Uses standard Ethernet and WLAN interfaces
  • Webconnect for faster and easier PV system monitoring with Sunny Portal / Sunny Places
  • Local monitoring via web interface
  • Optimized data logging for maximum transparency, even without continuous online access
  • Ideal for retrofits or modular expansions of single- and three-phase systems in the 1 to 30 kW range
  • All lead-acid batteries and over 20 different lithium-ion batteries can be used
  • Can be expanded with SMA Multicluster-Technologie for systems in the 20 to 300 kW range
  • Core element in the SMA Flexible Storage System, automatically controls the power consumption in the home in conjunction with the intelligent Sunny Home Manager 2.0 energy manager
  • Provide the kind of security in the electricity supply that is needed for off-grid use
  • Exceptionally high overload capacity ensures a safe electricity supply, even in critical situations
  • IP54 for operation even in extreme environment
