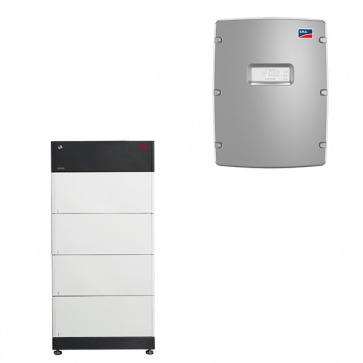

BYD Battery-Box Premium LVS 16.0 & SMA Sunny Island 4.4M solar battery inverter Storage Package

BYD Battery-Box Premium LVS 16.0 & SMA Sunny Island 4.4M solar battery inverter Storage Package

48 V Energy Storage Package Scope of delivery:
BYD Battery-Box Premium LVS 16.0 set:
   1 x BYD BATTERY-BOX PREMIUM LVS Base plate+on top PDU (Power distribution unit)
   1 x BYD BATTERY-BOX PREMIUM LVS BMU (Battery Management Unit)
   4 x BYD BATTERY-BOX PREMIUM MODULE LVS 4.0
1 x SMA Sunny Island 4.4M solar battery inverter

BYD Battery-Box Premium LVS features:

• Usable capacity: 16.0 kWh
• Nominal voltage: 51.2 V
• Max. Output current: 250A
• Peak Output current: 360A, 5s
• Operating Voltage Range: 40-57,6 V
• Operating temperature: -10 °C to +50 °C
• Communication: CAN/RS485
• Round trip energy efficiency: >= 95 %
• Certification: VDE2510-50 / IEC62619/ CE / CEC / UN38.3
• Protection rating: IP55
• Applications: ON Grid / ON Grid + Backup / OFF Grid
• Extendable anytime: LVS 4-16 (4.0-16.0kWh) in parallel up to 16  towers for a maximum size up to 256 kWh
• Dimensions (H/W/D): 1227x650x29
• Weight: 202,5 kg
• Warranty: 10-year manufacturer guarantee

  CAUTION: Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II


More information:

• BYD Battery-Box Premium LVS Datasheet
• BYD Battery-Box Premium LVS Quick Start Guide
• BYD Battery-Box Premium LVS Minimum Configuration List
• BYD Battery-Box Premium LVS Operating Manual
• BYD Battery-Box Premium LVS Limited Warranty Residential Europe

SMA Sunny Island 4.4M, 6.0H, 8.0H solar battery inverter - the most reliable all-purpose solution for your home and commercial applications

• Warranty period extended to 10 years
• Can be immediately and easily configured and monitored via smartphones or tablets
• Uses standard Ethernet and WLAN interfaces
• Webconnect for faster and easier PV system monitoring with Sunny Portal / Sunny Places
• Local monitoring via web interface
• Optimized data logging for maximum transparency, even without continuous online access
• Ideal for retrofits or modular expansions of single- and three-phase systems in the 1 to 30 kW range
• All lead-acid batteries and over 20 different lithium-ion batteries can be used
• Can be expanded with SMA Multicluster-Technologie for systems in the 20 to 300 kW range
• Core element in the SMA Flexible Storage System, automatically controls the power consumption in the home in conjunction with the intelligent Sunny Home Manager 2.0 energy manager
• Provide the kind of security in the electricity supply that is needed for off-grid use
• Exceptionally high overload capacity ensures a safe electricity supply, even in critical situations
• IP54 for operation even in extreme environment

Downloads:

• SMA Sunny Island 4.4M-6.0H-8.0H Data Sheet
• SMA Sunny Island 4.4M-6.0H-8.0H Operating Manual
• SMA Sunny Island Quick Reference Guide
• SMA Sunny Island 4.4M-6.0H-8.0H Warranty
