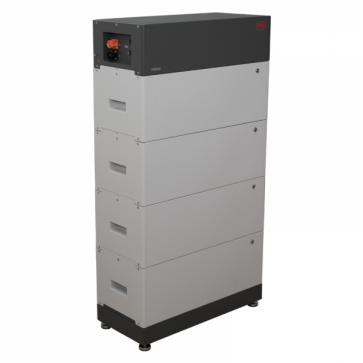

BYD Battery-Box Premium LVS 16.0

SKU: BYD Battery-Box Premium LVS 16.0

Availability: In stock

€6,642.00

* Required Fields

BYD

Worldwide delivery




Product Description
Details

BYD Battery-Box Premium LVS 16.0
Low voltage lithium-ion battery storage system, expandable from 4 up to 256 kWh

The BYD Battery-Box Premium LVS is a lithium iron phosphate (LFP) battery pack for use with an external 1-phase or 3-phase inverters.
Compatibilies with: Victron Multiplus, Multigrid, Qautro and EasySolar 48V Inverters/Chargers; with Goodwee and SMA Sunny Island Inverters (see Minimum Configuration List below).
Battery-Box Premium LVS, is aimed for PV self-consumption optimization for residential and light commercial on-grid and off-grid applications including capabilities for high-powered emergency-backup systems.
A single Battery-Box Premium LVS set contains between 1 to 6 battery LVS modules stacked in parallel and can reach from 4 to 24.0 kWh usable capacity in one tower. Ability to scale by later adding LVS modules on towers of 1 up to 4 modules only.

Product advantages:

  • State of art Plug and Play solution, saving installation
  • Maximum Flexibility for any Application with up to 64 Modules Connected in Parallel
  • Compatible with Market Leading 1 and 3 Phase Inverters
  • Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power
  • Capable of High-Powered Emergency-Backup and Off-Grid Function
  • Patented Internal Plug Design Requires No Additional Wiring
  • Self-Consumption Optimization for Residential and Commercial Applications

Product features:

  • Usable capacity: 16.0 kWh
  • Nominal voltage: 51.2 V
  • Max. Output current: 250A
  • Peak Output current: 360A, 5s
  • Operating Voltage Range: 40-57,6 V
  • Operating temperature: -10 °C to +50 °C
  • Communication: CAN/RS485
  • Round trip energy efficiency: >= 95 %
  • Certification: VDE2510-50 / IEC62619/ CE / CEC / UN38.3
  • Protection rating: IP55
  • Applications: ON Grid / ON Grid + Backup / OFF Grid
  • Extendable anytime: LVS 4-16 (4.0-16.0kWh) in parallel up to 16  towers for a maximum size up to 256 kWh
  • Dimensions (H/W/D): 1227x650x29
  • Weight: 202,5 kg
  • Warranty: 10-year manufacturer guarantee

CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

Scope of delivery:

  • 4 x BYD BATTERY-BOX PREMIUM MODULE LVS 4.0
  • 1 x BYD BATTERY-BOX PREMIUM LVS Base plate+on top PDU (Power distribution unit)
  • 1 x BYD BATTERY-BOX PREMIUM LVS BMU (Battery Management Unit)
