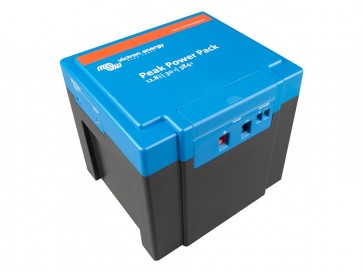

Victron Peak Power Pack 12,8V/30Ah 384Wh

Victron Peak Power Pack 12,8V/30Ah 384Wh

A lithium-ion battery pack with intrinsically safe LiFePO4 cells, a built-in charger, and suitable for high discharge currents. Nominal voltage: 12.8VBattery capacity: 8Ah to 40Ah(not suitable for parallel or series connection)

Lightweight and easy to install
Ideal for mobile applications.
Size (h x w x d), mm: 172 x 190 x 172
Weight: 5,4 kg

Effective protection against improper use
Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.

Output 1 “mover”: high capacityoutput for caravan manoeuvring and other applications that are energy intensive

• Ideal for caravan manoeuvring (caravan movers).
• The 8Ah version is meant for lighter caravans. 20Ah or more is recommended for caravans above 1000kg.
• Short-circuit proof.
• Protected against excessive battery discharge.

Output 2 “domestic”: for low DC loads (not available for the 8Ah model)

• Intended for lighting, audio and video, pumps, fridges.
• Short-circuit proof.
• Protected against excessive battery discharge.

Input 1 “car/solar”: charging while driving or charging with a solar panel.
Equipped with voltage and current control for safe charging of the lithium-ion battery. In fact, any source of electric power can be connected to this input (e.g. an alternator or a battery charger), as long as 11V < Vin < 25V.
The current limit is automatically set to a safe value.

Input 2 “adapter”: the adapter suppliedwith the Peak Power Packcanbe connected to this input
Battery charging current: 3A, and suitable for 110/230V power supply.

Rapid charging is possible via output 1 (high capacity outputand 30Ah/40Ah models only)
A battery charger or inverter/charger can be connected to the high capacity output. The maximum charging current is 15A and 20A respectively and the recommended charging voltage is 14V (maximum 14.2V).

Storage mode
Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during storage.

Remote control with status indicator
Push button (supplied) with a dual-colour LED status indicator:

• Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED.
• Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
• Hold down for 5 seconds: storage mode, blue LED flashes 10 times.
• Battery is charged via input 1: slow flashing blue LED.
• Battery fully charged: blue LED.
• Overload or overheating: flashing red LED.

VE.Direct port: can be connected to a PC or smartphone
('VE.Direct to USB' or 'VE.Direct Bluetooth Smart dongle' required)
Operation:

• Output 1: on / 30-minute timer / off
• Output 2: on/off
• Input 1: on/off

Monitoring:

• Battery voltage
• Temperature and alarms

More information:

• Victron Peak Power Pack 12,8V Datasheet
