MC4-Evo2 Socket PV-KBT 4/6II cable diameter 6.4-8.4 mm²

SKU: MC4-Evo2 Socket PV-KBT 4/6II

Availability: In stock

€1.49
  • Buy 100 for €1.34 each and save 11%
  • Buy 250 for €1.32 each and save 12%
  • Buy 500 for €1.29 each and save 14%
  • Buy 1000 for €1.27 each and save 15%

* Required Fields

Stäubli

Worldwide delivery




Product Description
Details

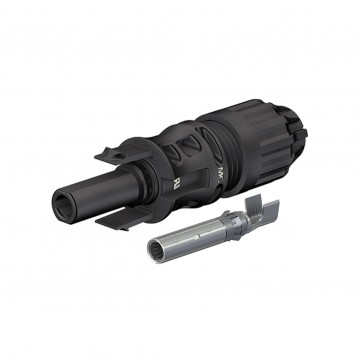

MC4-Evo2 Socket PV-KBT 4/6II cable diameter 6.4-8.4 mm², conductor cross section - 4-6 mm². Safe and simple serial connection of PV-modules, including the insulating part.

Product features

  • Internationally certified with IEC, UL, JET, cTÜVus
  • Approved for 1500 V DC (IEC, JET), 1500 V DC (UL) unrestricted access
  • MULTILAM Technology, has proven the quality and durability several 100 million times since 2004
  • Suited for all climatic environments thanks to resistance to UV, ammonia, and high IP class (IP68)
  • Available as a field and preassembled connector, standard crimping tools can be used
  • Mating compatibility with MC4 connector family
