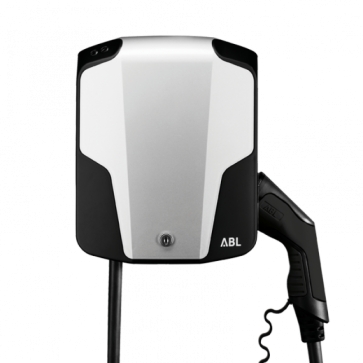

ABL eMH1 Wallbox 11kW EV charger
The easy Plug & Charge solution for your home

The eMH1(1W1101) is the smallest wallbox with an attached charging cable and Type 2 connector for installation in the private and semi-public domain.
eMH1 Wallbox extremely compact dimensions perfect fit for indoor and outdoor solution for efficient charging of EV with a Type 2 charging socket ant it's ideal for simple applications in households.
The integrated residual current circuit breaker (RCCB, type A, 30 mA) guarantees an extra high operational safety and DC fault current detection (electronic, IΔn d.c.≥ 6 mA) is installed as standard.
Adjustable charging current range can be selected in 1 A increments via configuration software.
Integrated temperature monitoring protects the eMH1 Wallbox from overheating. Should the temperature exceed the limit, it reduces the charging output of the Wallbox or switches it off completely. If the temperature drops again, the eMH1 Wallbox automatically switches back to full charging output.
The integrated phase current measurement module detects asymmetries between individual phases in all Wallboxes connected to 3-phase power.

Key technical data:
Rated input voltage - 230 / 400 V
Rated input current - 16 A
Output/vehicle connection system - Single charging 6m cable with Type 2 connector (acc. IEC62196-2)
Output voltage - 230 / 400 V
Max. charging current - 16 A
Max. output - 11 kW
Communication - Mode 3 (acc. with IEC 61851-1)
Operating status indicator - LED (stand-by, EV detected, charging)
Interface - RS485
Operating temperature: -30°C to 50°C
Relative humidity - 5 to 95%, no condensation
Degree of protection - IP54
Dimensions (H/W/D) - 272 x 221 x 116 mm (packaging - 355 x 330 x 270 mm)
Weight - 4,5 kg
Delivery includes: Wallbox, printed installation guide, drilling template, mounting kit, 2 keys.
